Description

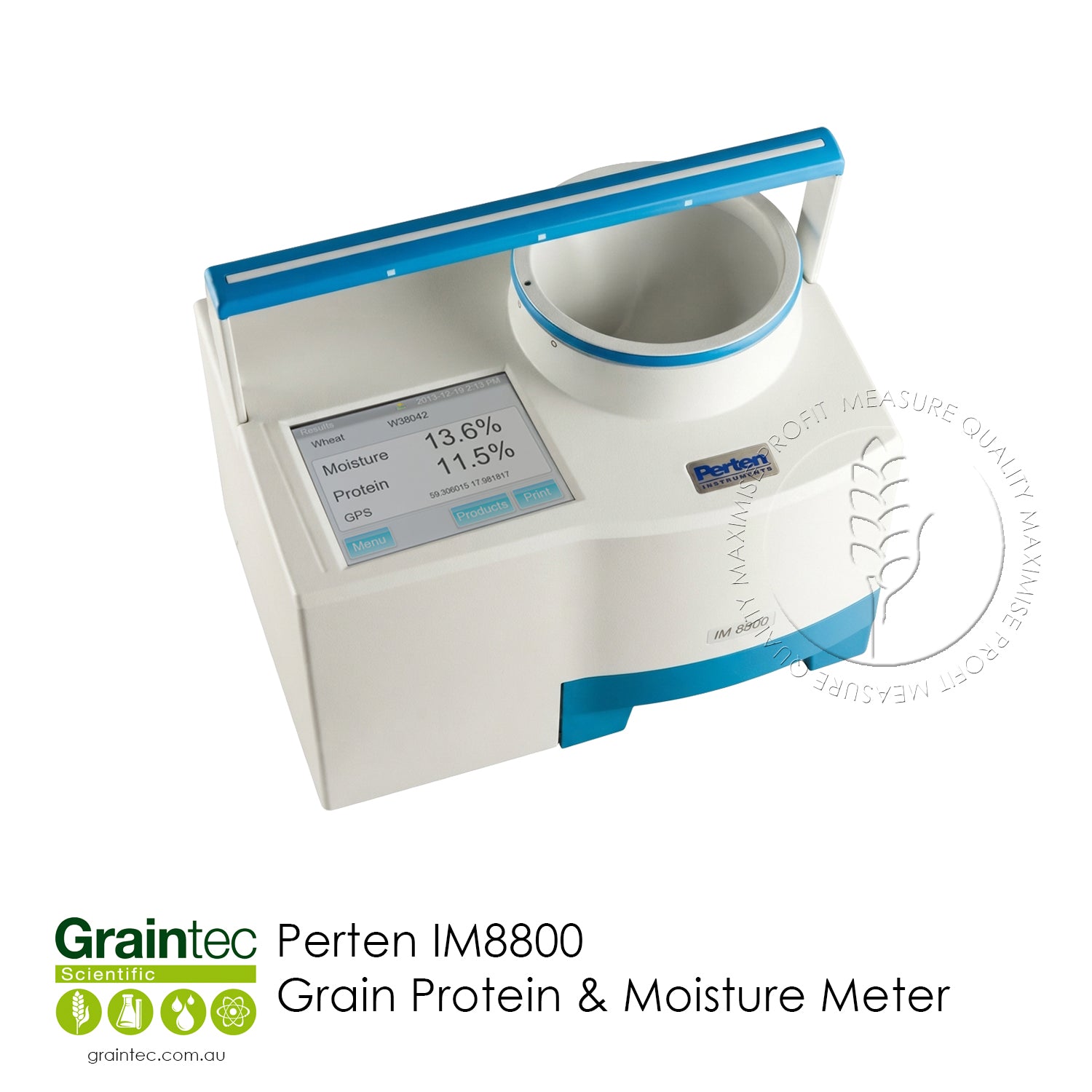

The Perten IM8800 on-farm NIR grain analyser combines speed and accuracy, with a host of convenient features, making it an indispensable tool. Its touchscreen interface and internal battery make this reliable meter number one for usability.
The Perten IM8800 protein and moisture meter has settings for wheat, barley, oats, rye, sorghum, lupins, canola, lentils, chickpeas, peas, corn, soybean, faba beans.
Features
- Measures moisture, protein, oil
- Whole grain analyser
- Rapid 90 second measurement
- Touchscreen operation
- Internal battery gives up to 2 hours of use
- 240VAC and 12VDC operation
FAQ
1. What is the primary function of the Perten IM8800?
The Perten Inframatic 8800 is a portable Near-Infrared (NIR) grain analyser designed to measure moisture, protein, and oil content in whole grains and oilseeds (such as wheat, barley, and canola) without requiring sample grinding. It provides laboratory-grade results directly in the field, in harvester cabs, or at grain storage sites.
2. How fast does the IM8800 test samples, and how portable is it?
The unit weighs 7 kg and delivers complete analytical results in approximately 90 seconds per sample. Powered by internal rechargeable batteries providing up to 2 hours of continuous operation, 12V–24V vehicle power, or AC mains, it allows growers to conduct spot testing in the field to determine optimal harvest timing and grain segregation.
3. How does built-in GPS integration assist with harvest management?
Equipped with an integrated GPS module, the IM8800 geo-tags each sample reading to create field-level protein maps on the go. Protein content in wheat can vary by up to 6% across a single field due to topography and soil nitrogen; mapping allows farmers to identify pockets of high-protein grain to harvest and bin separately for premium pricing.
4. What optical technology ensures measurement accuracy and durability outdoors?
The analyser uses solid-state diode-array transmittance technology operating across the 850–1050 nm wavelength range with no moving optical components. The absence of moving parts ensures resistance to field vibration and dust, while an automated shutter protects the optics from light, insects, and vermin. Calibration is directly aligned with the official laboratory-standard Perten IM9500 model.
5. How simple is the sample analysis workflow for operators?
Operation is driven via an intuitive 5.7-inch colour touchscreen display. Analyzing a sample requires three steps:
- Select the crop type from the menu.
- Pour the whole-grain sample (~400 mL) into the top funnel and press Start.
- View on-screen results after ~90 seconds and empty the catch drawer.
